Advanced product and technology make JINGDIAO the one to call for ingenious
and time proven solutions for those difficult applications that everyone else stays clear of.
If you want to be the standard in your industry, choose us.
Your needs are our highest priority.
Merry Christmas!
Oh！A Christmas tree "grows" in the machine tool?
Machining Samples

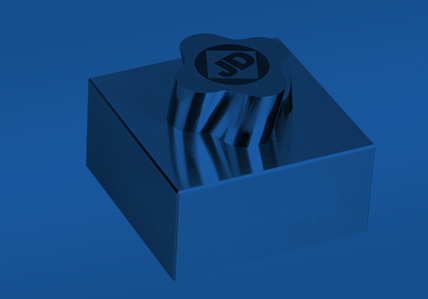

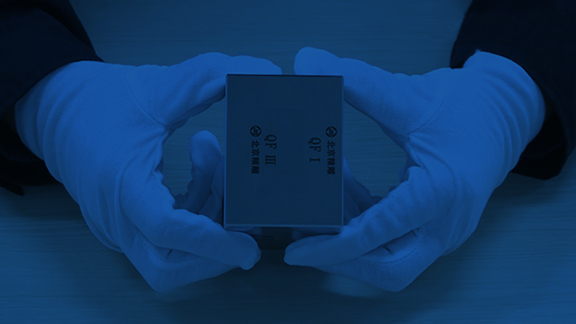

Precision Fitting Test Piece
Precision Fitting Test Piece
Material:
Size:
Machine:
Highlight:
H13(HRC52)
80×80×40 mm
HGU600T
+Fitting clearance <5μm
+Seamless fitting in 4 directions, interchangeably fitting between different sets
LEARN MORE

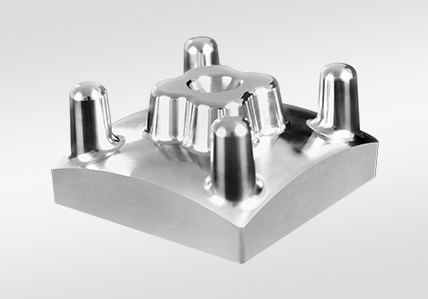

Freeform Surface Fitting Test Piece
Freeform Surface Fitting Test Piece
Material:
Core: DC53(HRC60)
Cavity: S136(HRC52)
Size:
Core: 30×30×25 mm
Cavity: 50×50×25 mm
Machine:
Highlight:
GRU200T
+Fitting clearance <5μm
+Dimensional accuracy along base line <2μm
LEARN MORE

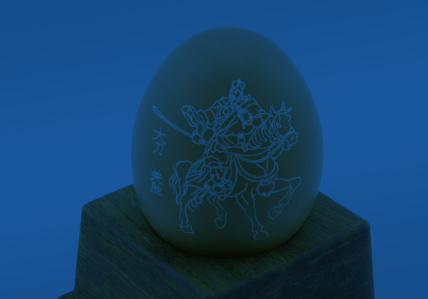

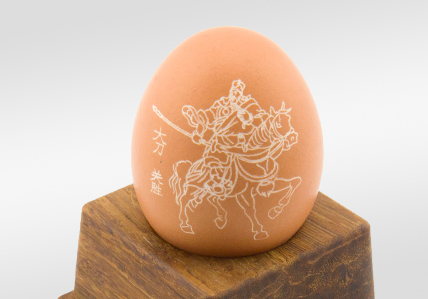

Egg Machining
Egg Machining
Material:
Machine:
Highlight:
Raw Egg
GRU200T
+Shape-followed machining
+Even cutting depth
LEARN MORE

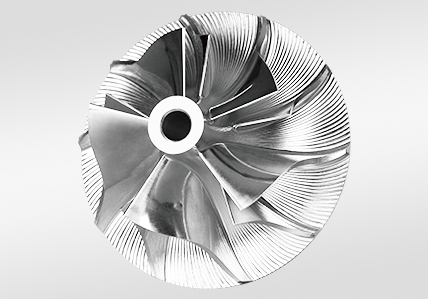

Impeller Test Piece
Impeller Test Piece
Material:
Size:
Machine:
Highlight:
AI 7075
Ø53×25 mm
GRU400T
+Total cycle time only 4min15s
+Surface roughness Ra <0.2μm
+Dynamic imbalance <0.06gmm
LEARN MORE

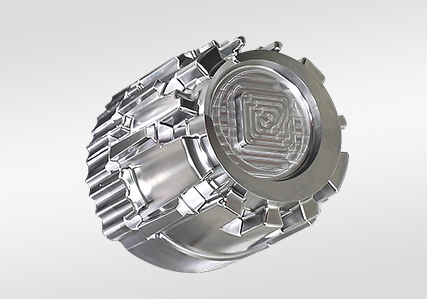

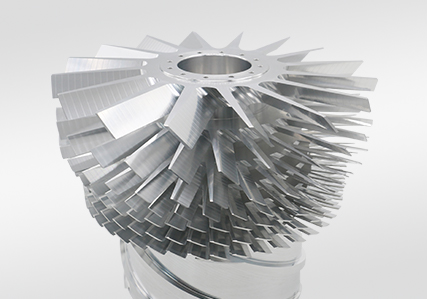

Turbo Pump Impeller Test Piece
Turbo Pump Impeller Test Piece
Material:
Size:
Machine:
Highlight:
AI 7075
Ø350×286 mm
MRU600
+Total cycle time only 16h
+Amplitude value<3μm
LEARN MORE
Angle Clearing Test Piece
Angle Clearing Test Piece
Material:
Size:
Machine:
Highlight:
H13(HRC52)
183×184×191 mm
GRU400T
+Clear edges and corners without obvious machining marks
+Corner finishing with R0.75mm cutting tool
LEARN MORE

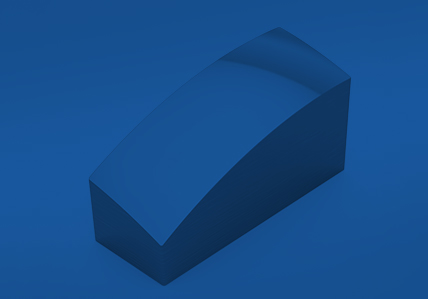

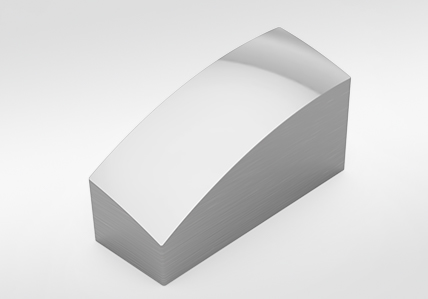

Mirror Machining Test Piece
Mirror Machining Test Piece
Material:
Size:
Machine:
Highlight:
STAVAX(HRC50)
75×30×40 mm
GRU200T
+CNC machining without polishing
+Surface roughness Sa<5nm
+Continuous finishing with R1mm PCD cutting tool for 14h
LEARN MORE

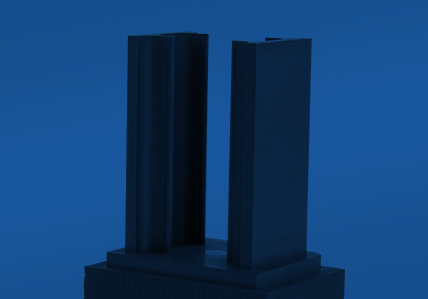

Graphite Electrode Test Piece
Graphite Electrode Test Piece
Material:
Size:
Machine:
Highlight:
Graphite(SGL 8650)
58×43×75 mm
PGU600
+Dimensional accuracy ±0.01mm
+Clear edges and corners without edge-breaking
LEARN MORE
Must See Videos
Standardized Mold Making

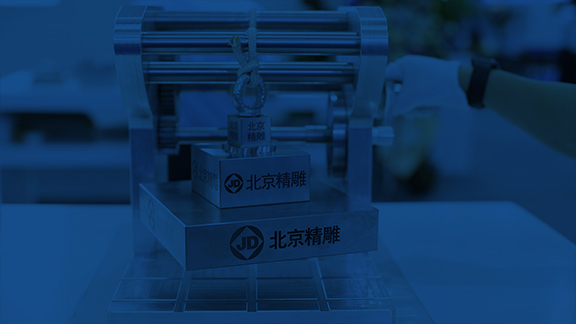

12.5kg No-magnetic Steel Part lifted due to Good Air Tightness
Die Mold Making with JINGDIAO Machine Tools
Quick Learn About JINGDIAO
Advanced product and technology make JINGDIAO the one to call for ingenious and time proven solutions for those difficult applications that everyone else stays clear of.
